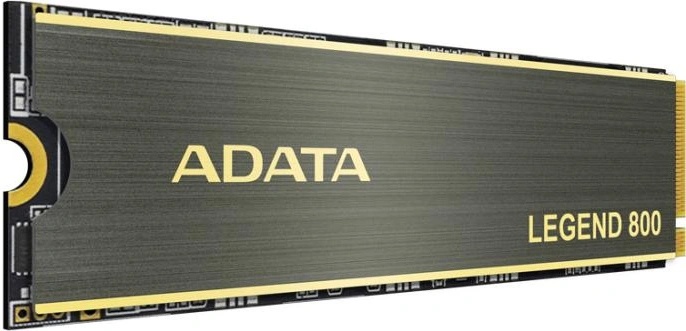

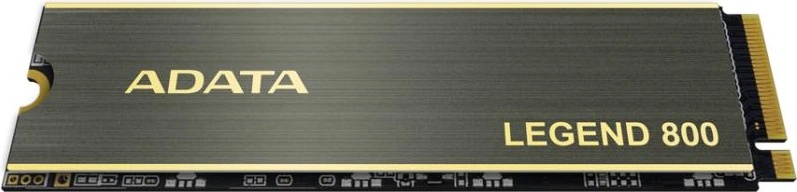

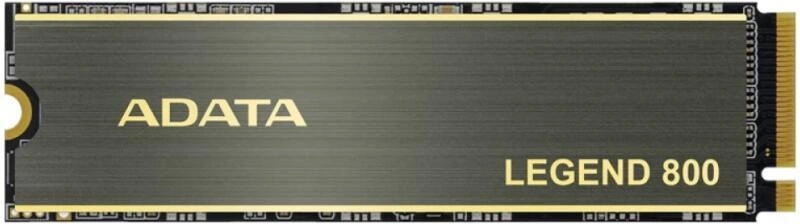

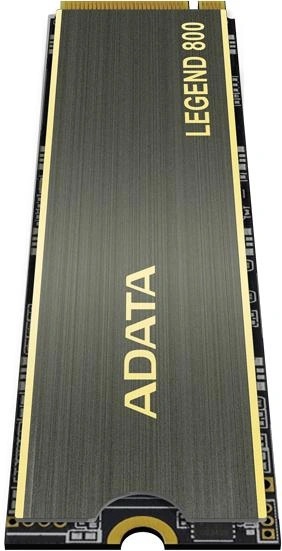

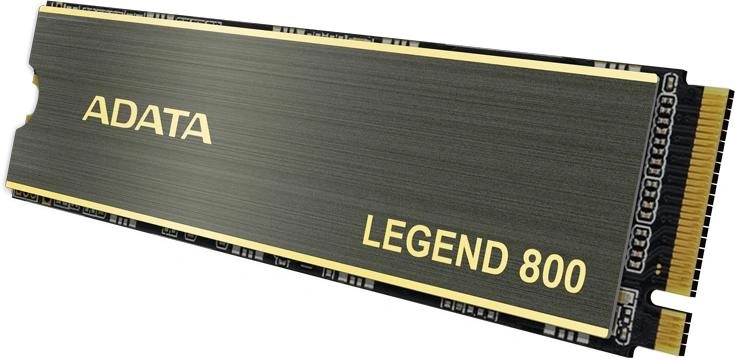

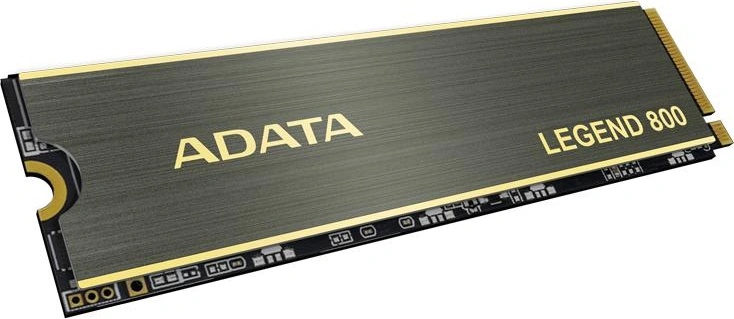

LEGEND 800 PCIe Gen4 x4 M. 2 2280 Solid State Drive

• PCIe Gen4 x4


• Max. read/write speed: 3,500/2,800MB/s


• Capacity: Up to 2000GB


• Supports NVMe 1.4


• Supports latest Intel and AMD platforms

Download SSD ToolBox to get the latest firmware for optimized performance and other value-added features

Specification

•
  Capacity


1000GB

•
  Form factor


M. 2 2280

•
  NAND Flash


3D NAND

•
  Dimensions (L x W x H)


80 x 22 x 2.65mm / 3.15 x 0.87 x 0.1inch (with heat sink)

80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (without heat sink)

•
  Weight


With heat sink：7g / 0.26oz

Without heat sink：6.3g / 0.22oz

•
  Interface


PCIe Gen4 x4

•
  Sequential Read (Max)


Up to 3,500MB/s*

•
  Sequential Write (Max)


Up to 2,800MB/s*

•
  Operating temperature


0°C - 70°C

•
  Storage temperature


-40°C-85°C

•
  Shock resistance


1500G/0.5ms

•
  MTBF


2,000, 000 hours

•
  Terabytes Written (TBW)


1200TB**

•
  Note


* This product is compatible with the latest Intel and AMD platforms and must be used with a motherboard that supports PCIe 4.0 to achieve optimal performance. Actual performance may vary depending on the hardware and software configurations.

* This product is backward compatible with PCIe 3.0. If a third-generation PCIe motherboard is used, this product will be able to achieve sequential read/write speeds of 3400/3000MB per second.





Продукт известен още и като Legend 800 1 TB M 2 ALEG 800 1000 GCS, Legend8001TBM2ALEG8001000GCS, Legend 800 1TB M.2 (ALEG 800 1000GCS), Legend8001TBM2ALEG-800-1000GCS, Legend 800 1TB M.2 (ALEG-800-1000 GCS)
