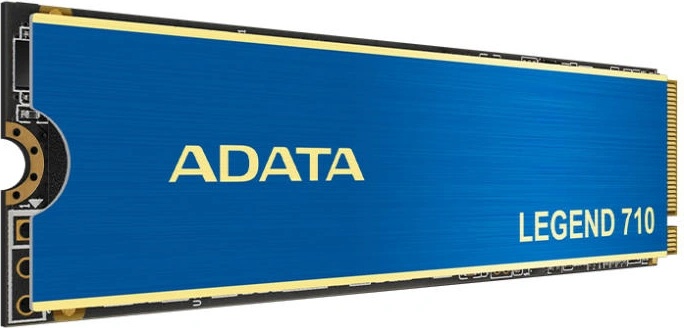

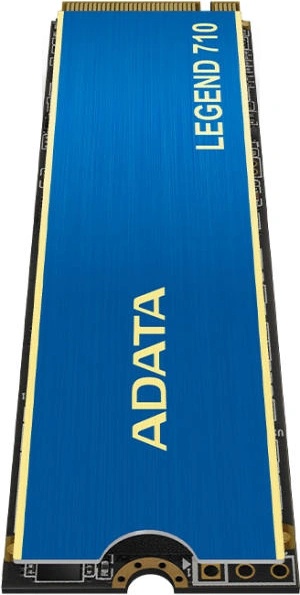

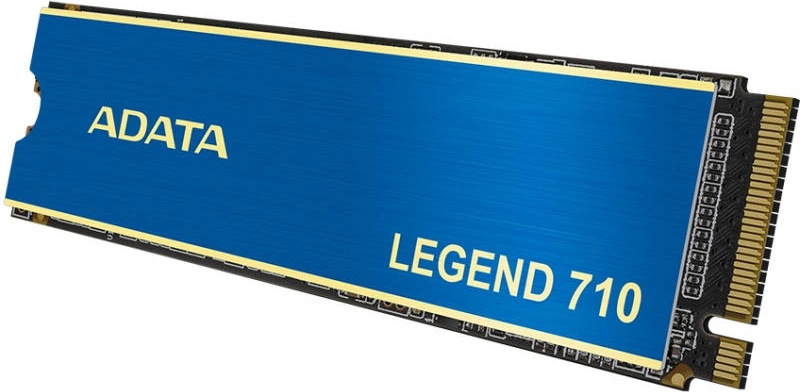

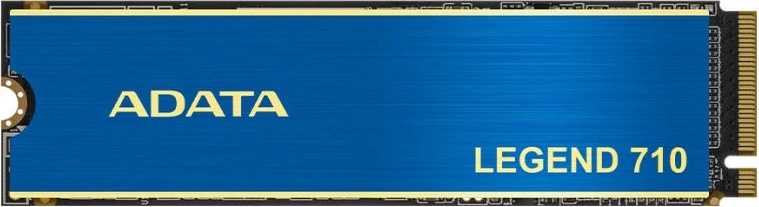

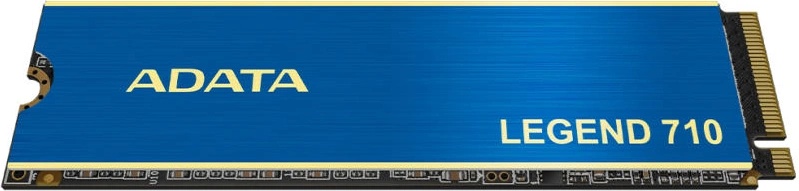

LEGEND 710 PCIe Gen3 x4 M. 2 2280 Solid State Drive 1TB

● PCIe Gen3 x4 interface

● Excellent read/write performance

● Heat sink keeps things 15% cooler

● Great upgrade option for creators

● High capacities

● Supports NVMe 1.4

● LDPC & AES 256-bit encryption

● Supports Host Memory Buffer(HMB)





Enhancing Your Creativity

The LEGEND 710 utilizes PCIe Gen3 x4 and NVMe 1.4 to deliver sustained read and write speeds of up to 2,400/1,800MB per second. It's M. 2 2280 specification supports the latest Intel and AMD platforms, including desktop PCs and laptops.





Keeping Things Cool

The LEGEND 710's understated but elegant heat sink design is characterized by a regal blue color scheme with an exquisite golden-colored trimming. The heat sink works to keep temperatures down by 15% for optimal performance and stability.





Helping You Create Better

Creativity can't wait! The LEGEND 710 is equipped with SLC caching and HMB technology (Host Memory Buffer) for seamless productivity.





Protecting Your Creations

With LDPC (Low Density Parity Check Code) and AES 256-bit encryption, the LEGEND 710 ensures accurate data transmissions and security.





SSD Toolbox

SSD ToolBox automatically ensures you have the latest firmware for optimal performance and allows for the monitoring of drive health and remaining life through Self-Monitoring, Analysis, and Reporting Technology (S. M. A. R. T. ) attributes. It also lets you keep track of the current operating temperature, capacity, and total space used.





Specifications:

Capacity

512GB / 1TB

Form factor

M. 2 2280

NAND Flash

3D NAND

Controller

－

Dimensions (L x W x H)

80 x 22 x 3.13mm / 3.15 x 0.87 x 0.13inch (with heat sink)

80 x 22 x 2.15mm / 3.15 x 0.87 x 0.09inch (without heat sink)

Weight

9g / 0.32oz (with heat sink)

6.2g / 0.22oz (without heat sink)

Interface

PCIe Gen3 x4

Sequential Read (Max)

Up to 2,400MB/s*

Sequential Write (Max)

Up to 1,800MB/s*

4KB Random Read IOPS(Max)

Up to 180K*

4KB Random Write IOPS(Max)

Up to 150K*

Operating temperature

0°C - 70°C

Storage temperature

-40°C - 85°C

Shock resistance

1500G/0.5ms

MTBF

1,500, 000 hours

Terabytes Written (TBW)

260TB**
