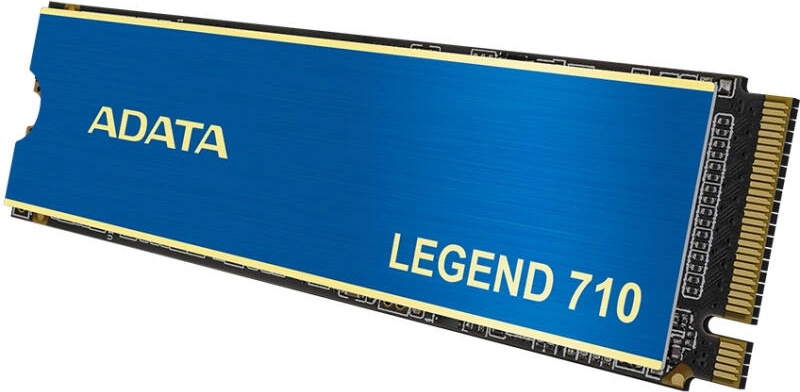

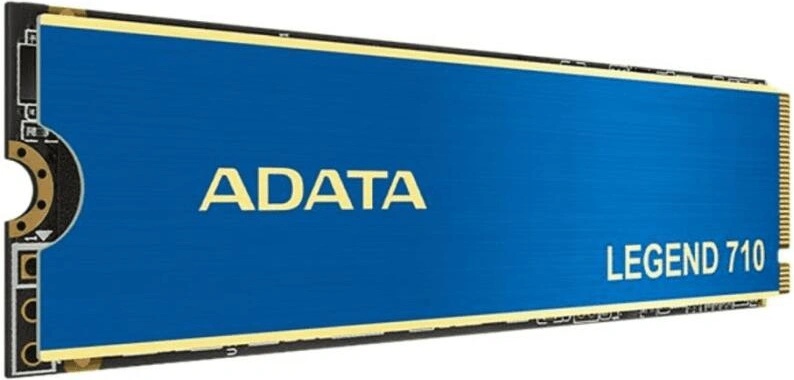

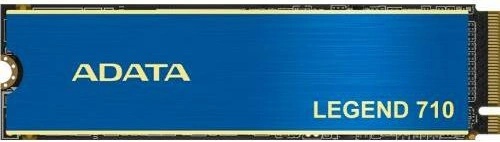

A-DATA LEGEND 710

A LEGEND IN THE MAKING



Enhancing Your Creativity

The LEGEND 710 utilizes PCIe Gen3 x4 and NVMe 1.4 to deliver sustained read and write speeds of up to 2,400/1,800MB per second. It's M. 2 2280 specification supports the latest Intel and AMD platforms, including desktop PCs and laptops.

Keeping Things Cool

The LEGEND 710's understated but elegant heat sink design is characterized by a regal blue color scheme with an exquisite golden-colored trimming. The heat sink works to keep temperatures down by 15% for optimal performance and stability.

Helping You Create Better

Creativity can't wait! The LEGEND 710 is equipped with SLC caching and HMB technology (Host Memory Buffer) for seamless productivity.

Protecting Your Creations

With LDPC (Low Density Parity Check Code) and AES 256-bit encryption, the LEGEND 710 ensures accurate data transmissions and security.



Technical specs

Capacity
2TB

Form factor
M. 2 2280

NAND Flash
3D NAND

Controller
RTS5766DL

Dimensions (L x W x H)
80 x 22 x 3.13mm (with heat sink)

80 x 22 x 2.15mm (without heat sink)

Weight
9g (with heat sink)

6.2g (without heat sink)

Interface
PCIe Gen3 x4

Sequential Read (Max)
Up to 2,400MB/s

Sequential Write (Max)
Up to 1,800MB/s

4KB Random Read IOPS(Max)
Up to 200K

4KB Random Write IOPS(Max)
Up to 150K

Operating temperature
0°C - 70°C

Storage temperature
-40°C - 85°C

Shock resistance
1500G/0.5ms

MTBF
1,500, 000 hours

Terabytes Written (TBW)
520TB



Продукт известен още и като Legend 710 2 TB M 2 ALEG 710 2 TCS, Legend7102TBM2ALEG7102TCS, Legend 710 2TB M.2 (ALEG 710 2TCS), Legend7102TBM2ALEG-710-2TCS, Legend 710 2TB M.2 (ALEG-710-2 TCS)
